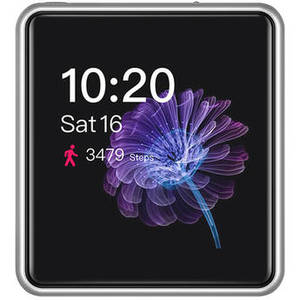

M5 Ultra-Portable High-Resolution Audio Player (Dreamy Silver)
![]() |
From FiiO
Availability: Item is currently available.
2,263 Points
See more in Electronics
See more in Audio & Video
Product Description
The palm-sized M5 Ultra-Portable High-Resolution Audio Player from FiiO is packed with processors that are engineered to deliver a high-resolution audio experience when on the go. The Ingenic X1000E processor is geared to provide low power consumption without sacrificing performance. The M5 can provide up to 13.5 hours of playback via Bluetooth. Sound quality is taken care of with the AKM AK4377 DAC, which supports native DSD and decoding of PCM and DSD formats with low noise and distortion.
Additional chips include the AXP192 for multi-channel power management, and the Qualcomm CSR8675 Bluetooth chip, which is made to provide lossless playback over Bluetooth. Speaking of which, the M5 is both a Bluetooth receiver and transmitter. When paired with a smartphone, the M5 gives you the ability to make and receive hands-free Bluetooth calls. Dual built-in microphones with cVc technology helps cancel out ambient noises for a clear conversation.
Additional chips include the AXP192 for multi-channel power management, and the Qualcomm CSR8675 Bluetooth chip, which is made to provide lossless playback over Bluetooth. Speaking of which, the M5 is both a Bluetooth receiver and transmitter. When paired with a smartphone, the M5 gives you the ability to make and receive hands-free Bluetooth calls. Dual built-in microphones with cVc technology helps cancel out ambient noises for a clear conversation.
Audio | |
DAC | 1 x AK4377 32-Bit |
Amplifier | |
External DAC Functionality | Yes, DSD up to 384 kHz / 32-Bit |
Audio Resolution | DSD128: 384 kHz / 32-Bit |
Frequency Response | 5 kHz to 90 kHz -3 dB |
Impedance | 0.5 Ohms (Headphone Out) |
Gain Settings | |
Volume Control | Analog (60 Steps) |
THD + N | 1% (Headphone Out) |
Audio Power Output | 42 mW at 16 Ohms (Headphone Out) 24 mW at 32 Ohms (Headphone Out) 2.7 mW at 300 Ohms (Headphone Out) |
Maximum Output Current | |
Maximum Output Voltage | |
Signal to Noise Ratio | |
Clock Jitter | |
Crosstalk | |
Balance Control | |
Custom Equalizer | Yes |
Performance | |
CPU | 1 GHz Ingenic X1000E Single-Core |
RAM | 64 MB |
Operating System | Proprietary |
Maximum Storage Capacity | 2 TB |
Flash Media Slot | 1 x microSDXC |
Display | 1.54" LCD (240 x 240 Resolution) |
Operation Method | Physical Buttons, Touchscreen |
Media Support | |
Formats Supported | Audio: APE (Fast), APE (Normal), APE (High), FLAC, WAV, AIFF, AIF, WMA Lossless, WMA, Apple Lossless, AAC, MP3, and OGG |
Connectivity | |
Wireless | Bluetooth 4.2 |
Bluetooth Codecs | AAC, aptX, aptX HD, LDAC, SBC |
Connections | 1 x 1/8" / 3.5 mm Headphone / S/PDIF Output 1 x USB Type-C USB 3.0 Input |
Built-In Mic | Yes |
Power | |
Battery | 1 x Replaceable Lithium-Polymer Battery 550 mAh Providing up to 10.5 Hours per Charge Providing up to 12 Hours per Charge Providing up to 13.5 Hours per Charge |
Charging Time | Full Charge: 2.5 Hours |
General | |
System Requirements | |
Supported Languages | |
Temperature | |
Dimensions (W x H x D) | 0.1 x 0.1 x 0.0' / 45.3 x 42.0 x 13.7 mm |
Weight | 1.34 oz / 38 g |
