YAS-209 2.1-Channel Soundbar System
 |
From Yamaha
Availability: Item is currently available.
6,868 Points
See more in Electronics
See more in Home Theater
Product Description

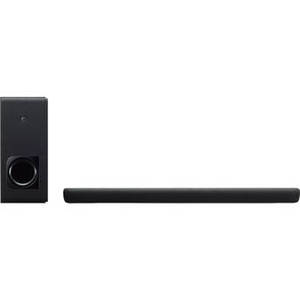

Enjoy enhanced television audio, Amazon Alexa functionality, and wireless audio streaming with the Yamaha YAS-209 2.1-Channel Soundbar System. Onboard Alexa functionality allows you to control the system with just your voice; it can also control other Alexa-compatible smart home devices. Optical and HDMI inputs provide digital connection for high-resolution video and audio components, and the HDMI connections support HDR UHD video. The included wireless subwoofer enables placement anywhere in your listening room. In addition to an IR remote control, the YAS-209 includes an optical cable for instant connectivity.
| Soundbar | |
| Channel Configuration | 2.1-Channel |
| Enclosure Type | Sealed |
| Passive Radiators | |
| Midrange Drivers | 4 x 1.75" / 4.45 cm Cone |
| High-Frequency Drivers | 2 x 1" / 2.54 cm Dome |
| Amplifier Output | 100 W |
| Frequency Response | 190 Hz to 22 kHz |
| Impedance | 4 Ohms (HF Drivers) |
| Speaker Positioning | |
| Speaker Configuration | |
| Enclosure Type | |
| Low-Frequency Drivers | |
| Midrange Drivers | |
| High-Frequency Drivers | |
| Full-Range Drivers | |
| Power Rating | |
| Frequency Response | |
| Satellite Connectivity | |
| Maximum SPL | |
| Total Harmonic Distortion (THD) | |
| Sensitivity | |
| Placement & Mounting Options | |
| Subwoofer | |
| Enclosure Type | Bass-Reflex |
| Drivers | 1 x 6.5" / 16.51 cm |
| Passive Radiators | |
| Amplifier Output | 100 W |
| Frequency Response | 34 Hz to 190 Hz |
| Impedance | 2 Ohms |
| Maximum SPL | |
| Total Harmonic Distortion (THD) | |
| Subwoofer Connectivity | Wireless |
| Connectivity | |
| Inputs | 1 x HDMI - Audio/Video 1 x Optical TOSLINK - Audio |
| Outputs | 1 x HDMI - ARC/Audio/Video |
| USB Ports | 1 x USB (Version Unspecified) (Service) |
| Ethernet | LAN |
| Wireless Audio Protocols | Bluetooth |
| Bluetooth | 4.2 |
| NFC | No |
| Bluetooth Profiles | A2DP ARCP |
| Bluetooth Codec Support | AAC SBC |
| Bluetooth Range | 33' / 10.1 m |
| Wi-Fi | Wi-Fi 4 (802.11n) |
| Compatibility | |
| Audio Decoding | DTS Digital Surround, DTS Virtual X, Dolby Digital, Dolby Pro Logic II, LPCM |
| Sampling Frequencies | Up to 192 kHz |
| HDCP Compliance | HDCP 2.3 |
| Supported File Formats | AAC, ALAC, FLAC, MP3, WAV, WMA |
| Power | |
| Power Consumption | 25 W (Soundbar) 20 W (Subwoofer) ≤ 4.3 W (Soundbar, Network Standby) 0.8 W (Subwoofer, Standby) |
| AC Input Power | 110 VAC, 60 Hz |
| Operating Temperature | |
| Storage Temperature | |
| Operating Humidity | |
| Storage Humidity | |
| Physical | |
| Wall Mountable | Yes |
| Soundbase Load Capacity | |
| Recommended Screen Size | |
| Dimensions | 36.6 x 2.5 x 4.3" / 930.3 x 63.5 x 108 mm (Soundbar) 7.5 x 16.5 x 16" / 191 x 420 x 406 mm (Subwoofer) |
| Weight | 6 lb / 2.7 kg (Soundbar) 17.4 lb / 7.9 kg (Subwoofer) |
| Warranty Length | Limited 2-Year Warranty |
