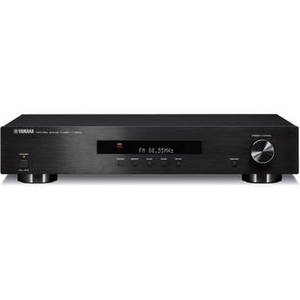

T-S500 AM/FM Stereo Tuner
 |
From Yamaha
Availability: Item is currently available.
5,104 Points
See more in Electronics
See more in Radios
Product Description
With its continued excellence in sound reproduction, Yamaha has once again created a versatile AM/FM stereo tuner for the music lover in you - the T-S500. All 40 stations can be accessed with two turns of the rotary encoder knob, after which it stops. Favorite stations can be set at either end for greater convenience.
In a nutshell, this is a user-friendly tuner that provides convenient tuning functions and a high visibility, two-line display.
| Output Level | FM (40kHz dev., 1kHz): 1.0V / 1.2 kohms AM (30% mod., 1kHz): 0.36 V / 1.2 kohms |
| AM/FM Tuner | AM Tuning range: 530-1710kHz Sensitivity: 300 μV/m Selectivity: 30 dB SNR: 50 dB Image rejection ratio: 35 dB FM Tuning range: 87.5-107.9MHz 50 dB quieting sensitivity (IHF, 100% mod.) Mono: 3 μV (20.2 dBf) User sensitivity (Signal to noise 30 db): Mono: 1 μV Image rejection ratio: 80 dB IF rejection ratio: 70 dB Selectivity (400kHz): 70 dB SNR (IHF): Mono / Stereo: 80 dB / 75 dB Harmonic distortion (1 kHz) Mono / Stereo: 0.3% / 0.5% Stereo separation (40kHz dev.) 1 kHz: 43 dB Frequency response (20Hz to 15kHz): -3 dB Antenna input (Unbalanced): 75 ohms |
| Presets | 40 |
| Connectors | RCA output x 1 |
| General | |
| Power Requirements | AC 120 V, 60Hz |
| Power Consumption | 9W |
| Dimensions (WxHxD) | 17.1 x 3.4 x 12" (43.3 x 8.6 x 30.5 cm) |
| Weight | 7.1 lb. (3.2kg) |
